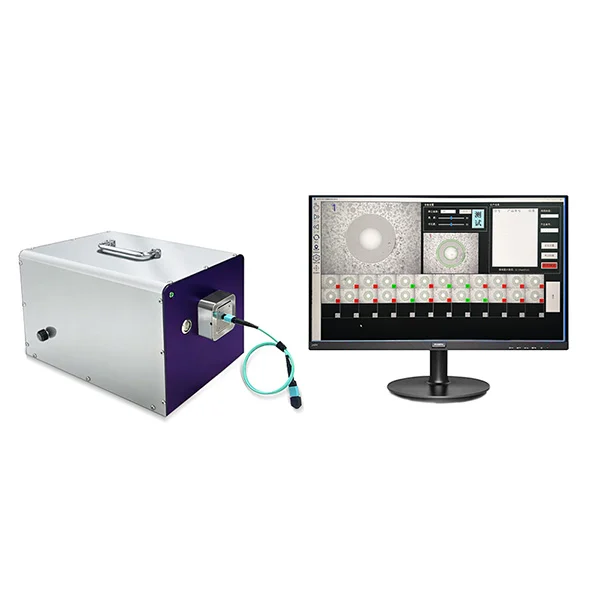

Fiber Inspection Scope
Fiber inspection scopes for magnified end-face inspection to IEC 61300-3-35 criteria — field and bench. Request a quote.
Product Details
A fiber inspection scope magnifies a connector end-face so contamination and defects can be judged against defined pass/fail criteria before mating. Because a single particle on the core causes measurable loss and a scratch is permanent, inspection is the discipline that prevents dirty-mate failures — the most common avoidable cause of link faults. A scope makes end-face condition visible and, under standards such as IEC 61300-3-35, defensible.
Aevumix supplies fiber inspection scopes for field and bench use. Handheld probe scopes reach connectors mated inside bulkheads and transceiver ports, while benchtop scopes suit assembly and lab inspection of exposed connectors. Clear, well-lit magnification makes contamination and end-face damage easy to identify, closing the inspect-clean-inspect loop: inspect, clean if needed, then re-inspect to confirm a pass before mating.
Because the right scope depends on your connectors and inspection setting, we help you specify the correct unit. Send your connector types and use case and we will recommend a fiber inspection scope and provide a quote.
About this item
- Magnifies end-faces for pass/fail inspection
- Supports IEC 61300-3-35-style criteria
- Handheld probes reach bulkhead-mated connectors
- Benchtop options for assembly and lab
- Clear, well-lit imaging of contamination and defects
- Central to the inspect-clean-inspect workflow
- Field- and bench-ready configurations
| Magnification | 200X / 400X |
|---|---|
| Optical Resolution | 0.5 μm |
| Focus | Manual |
| Video Output | Wi-Fi wireless transmission |
| Display | Smartphone or tablet screen |
| Power Consumption | 3 W |
| Power Supply | Built-in 5 V rechargeable battery or external supply |
| Battery Life | ≥ 5 h per charge |
| Operating Temperature | -10 to 50 °C |
| Storage Temperature | -20 to 50 °C |
| Dimensions | 210 × 56 × 50 mm |
| Weight | 0.5 kg |
Based on 5 customer reviews
We import inspection equipment for the US market. The fiber inspection line ships on schedule with certifications in order, and Aevumix communicates quickly when we need it. Reliable sourcing matters more to our business than the lowest price.
Consolidating our fiber inspection purchasing with Aevumix simplified everything. Probes and microscopes from one source, one set of paperwork, consistent quality. Quotes come back quickly and samples convinced our team before the first bulk order.
Request a Quote
Tell us what you need and our team will get back to you with pricing and availability as soon as possible.
