Fiber Inspection Probe
Fiber inspection probes that reach into bulkheads and transceiver ports to inspect mated end-faces in place. Request a quote.
Product Details
A fiber inspection probe is the handheld tool built to inspect connectors where they live — mated inside a bulkhead adapter or a transceiver cage. Its slim tip enters the port and images the end-face in place, revealing the contamination and defects that cause loss and reflectance faults without unmating the connection. For live systems and dense panels, the probe inspects the exact interface that matters, exactly where a benchtop microscope cannot reach.
Aevumix supplies fiber inspection probes for field and data-center use. Interchangeable tips address common bulkhead and connector types, and clear, well-lit magnification supports pass/fail assessment to IEC 61300-3-35-style criteria. As the first and last step of inspect-clean-inspect, the probe confirms an in-service or panel-mounted connector is clean before it is mated or re-mated — catching the dirty end-faces behind most avoidable faults.
Because the right probe depends on your connectors, bulkhead types and setting, we help you specify the correct unit and tips. Send your connector mix and use case and we will recommend a fiber inspection probe and provide a quote.
About this item
- Inspects connectors mated inside bulkheads and ports
- Slim tip images the end-face in place

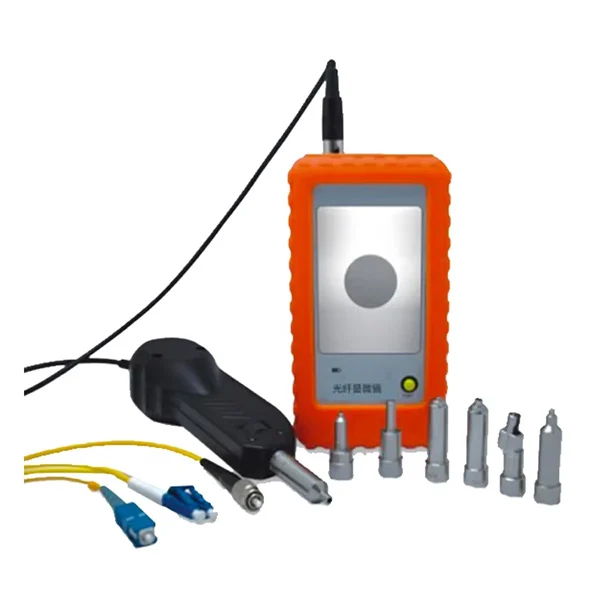

- Interchangeable tips for common connector types
- Supports IEC 61300-3-35-style pass/fail
- Clear, well-lit magnification of defects
- Ideal for live systems and dense panels
- Rugged, field- and data-center-ready
| Magnification | 200X |
|---|---|
| Optical Resolution | 0.5 μm |
| Focus | Manual |
| Image Sensor | 1/3″ CCD, 420 TV lines |
| Video Output | USB |
| Output Port | USB |
| Power Consumption | 3 W |
| Power Supply | USB bus power, 5 V |
| Operating Temperature | -10 to 50 °C |
| Storage Temperature | -20 to 50 °C |
| Dimensions | 210 × 56 × 50 mm |
| Weight | 0.5 kg |
Based on 5 customer reviews
We import inspection equipment for the US market. The fiber inspection line ships on schedule with certifications in order, and Aevumix communicates quickly when we need it. Reliable sourcing matters more to our business than the lowest price.
Consolidating our fiber inspection purchasing with Aevumix simplified everything. Probes and microscopes from one source, one set of paperwork, consistent quality. Quotes come back quickly and samples convinced our team before the first bulk order.
Request a Quote
Tell us what you need and our team will get back to you with pricing and availability as soon as possible.
